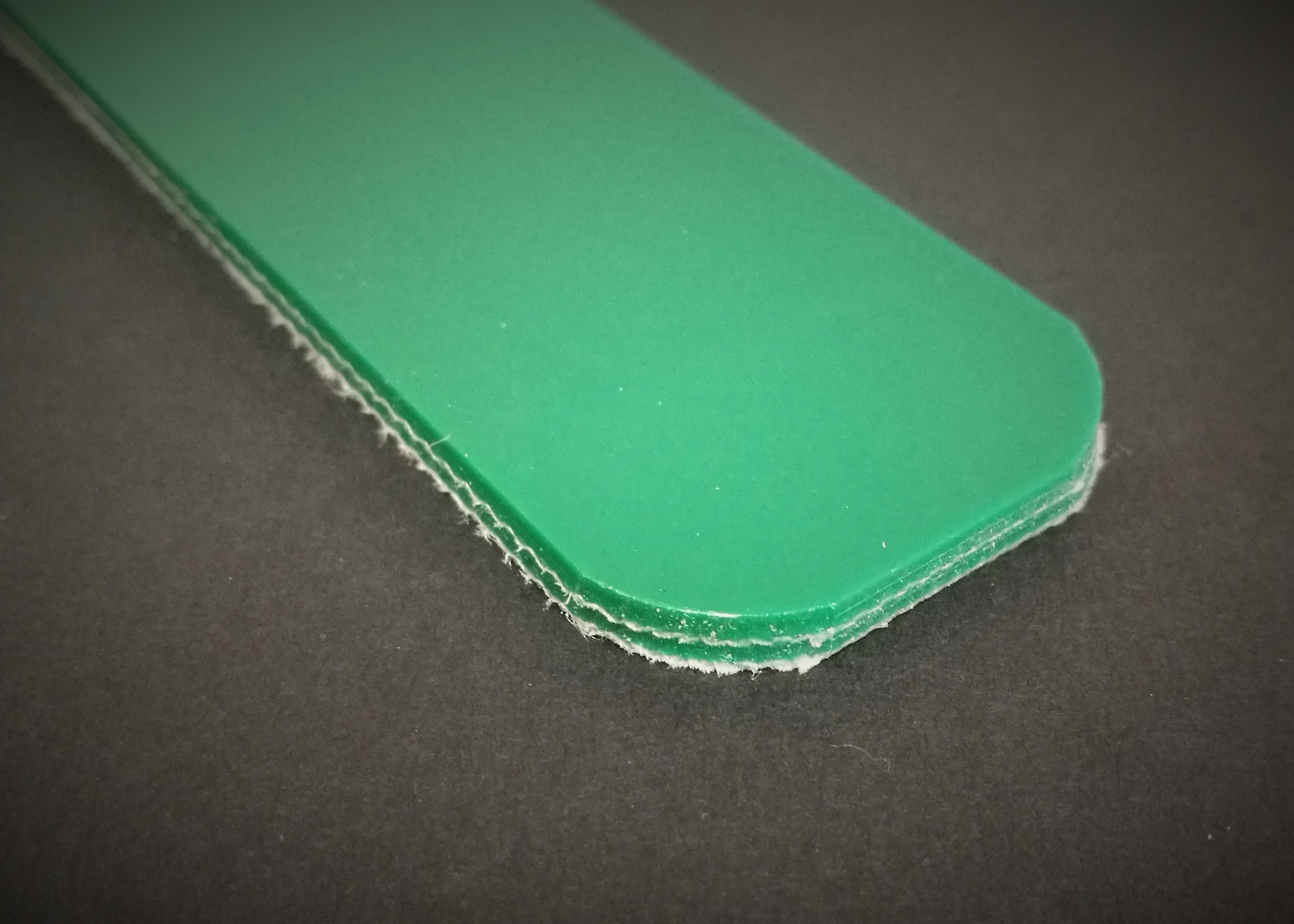

Strenex Z10/2F/V8-33 PVC 2Ply Light Green Belting
The Strenex Z10/2F/V8-33 PVC 2Ply Light Green Conveyor Belting is a common belt type used on agricultural and horticultural conveyors. It has a fabric traction surface and a thick abrasion top cover with exceptional resistance to oils and greases.
Your benefits
- Low friction traction layer
- High duty oil resistant conveyor surface
- Economic pricing
- Suitable for fasteners or endless splicing
Product Construction
Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: smooth, non adhesive
Colour conveying side: light green
Cover thickness conveying side: 1.2 mm
Shore hardness A° 74
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: white
Product Specifications
Total thickness: 3.3mm (+/- 0,1 mm)
Belt weight: 3.0 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 10 N/mm
Minimum pulley diameter: 75 mm
Knife edge suitable: no
Operation temperatures: -10…+80°C
Permanently antistatic: no
Flammability: no
FDA Food suitability: no
EU Food suitability: no
Installation Terms
Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: no
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,3
Friction coefficient on slider bed with friction cover: 0,25
Troughed installation: no
Cross rigidity: yes
