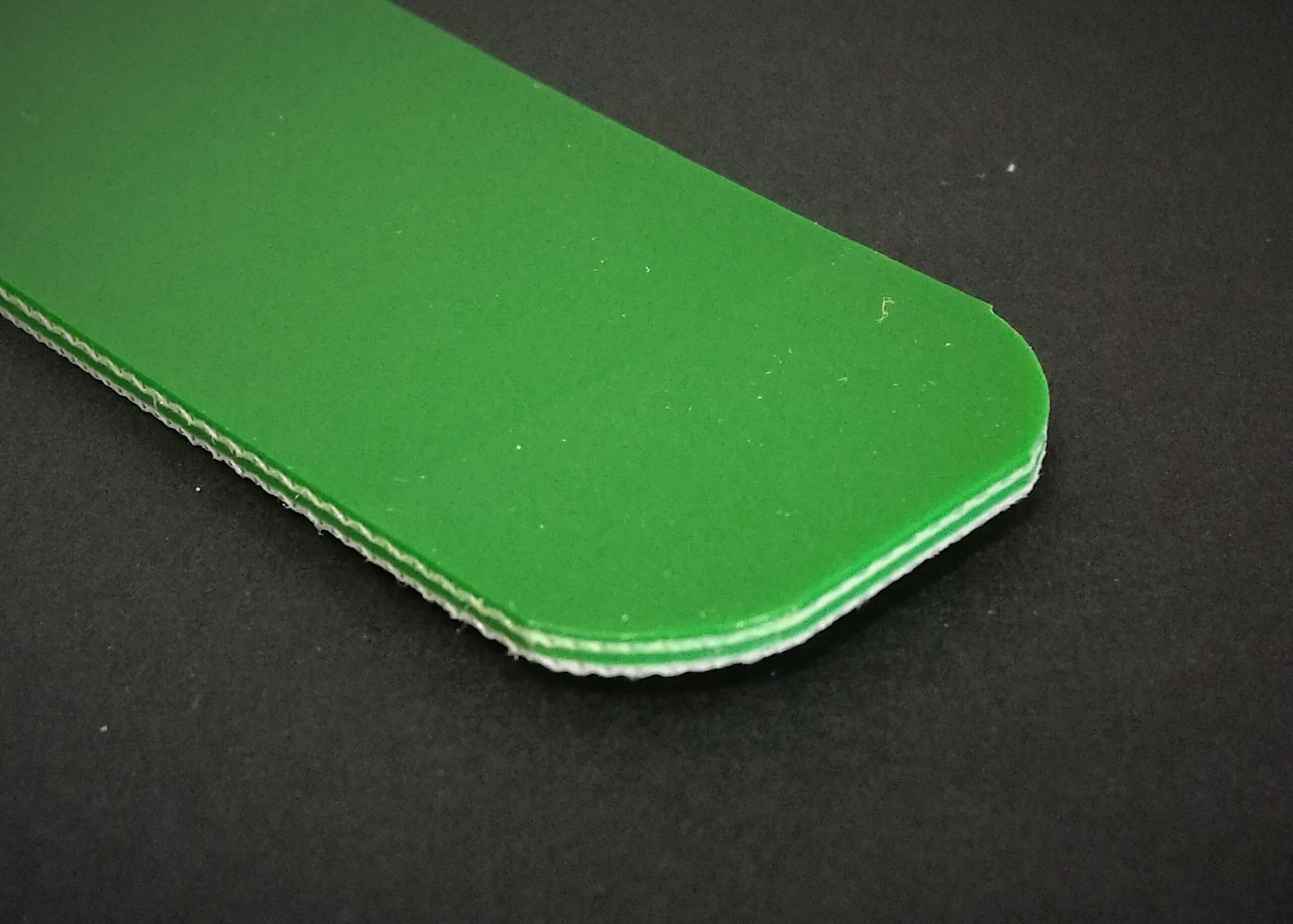

Strenex Z10/2F/V8-21G PVC 2Ply Green Belting
- General Details
- Product Construction
- Product Specifications
- Installation Terms
The Strenex Z10/2F/V8-21G PVC 2Ply light green conveyor belting is a common economy belting type used in many general conveying applications. Commonly found in the fruit and vegetable packing and processing industries
Your benefits
- Low cost
- Attractive appearance
- Low power consumption
- Suitable for fasteners or endless splicing
Product Construction
Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: smooth, non adhesive
Colour conveying side: light green
Cover thickness conveying side: 0.5 mm
Shore hardness A° 74
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: white
Product Specifications
Total thickness: 2.1mm (+/- 0,1 mm)
Belt weight: 2.31 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 10 N/mm
Minimum pulley diameter: 40 mm
Knife edge suitable: no
Operation temperatures: -10…+70°C
Permanently antistatic: no
Flammability: no
FDA Food suitability: no
EU Food suitability: no
Installation Terms
Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: no
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,3
Friction coefficient on slider bed with friction cover: 0,25
Troughed installation: no
Cross rigidity: yes
