Strenex UltiHook™ Wire Hooks

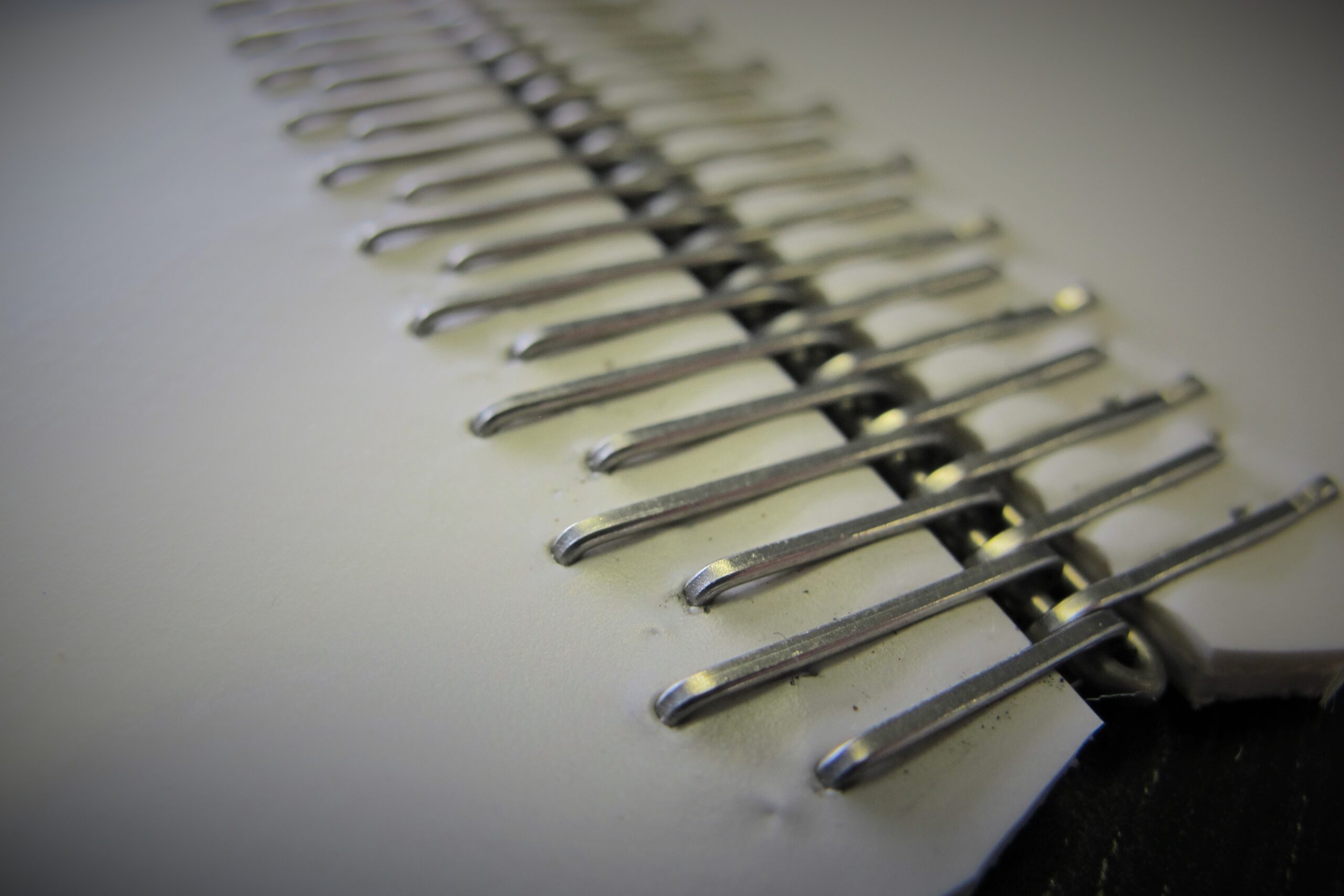

Strenex UltiHook Wire Hook Fasteners are suitable for many different applications which require a low profile splice with high retention. Well suited for smaller pulley diameters.

General Details

Strenex UltiHook™ Wire Hook Fasteners

The Strenex UltiHook Wire Hook Fasteners are used in commercial laundry belts, filter belts, felt belts and many other light duty conveying applications. Many different versions are available to meet your specific application requirements. UltiHook Fasteners are simply installed using basic tooling and give excellent working lifetime.

Advantages

  • Simple to Install
  • Low Cost per Splice
  • High Retention
  • Rectangle or Round Wires
  • Available with Textile Patches

View the Technical Info tab for detailed product specifications

Techical Info

Strenex UltiLace Technical Info

  1. Wire Hooks
    Specifications
    Product Type Belt Thickness Material Strip Length Wire Profile
    TR01-Y 1.5-3.0mm Stainless 30cm Round
    TR02-Y 3.0-4.0mm Stainless 30cm Round
    TR01-YU 1.5-3.0mm Stainless 30cm Round Long Leg
    TR01-DU 1.0-2.5mm Stainless 30cm Flat Long Leg
    Products Available
    Product Code Part Number Description Pack Type
    67001 TR01-Y Stenex Round Wire Hooks 5Pk Box
    67002 TR02-Y Strenex Round Wire Hooks 5Pk Box
    67003 TR01-YU Strenex Round Wire Hooks Long Leg 5Pk Box
    67004 TR01-DU Strenex Flat Wire Hooks Long Leg 5Pk Box

    Contact us if you would like a recommendation

  2. Laundry Hooks with Textile Patch
    Specifications
    Product Type Belt Thickness Material Wire Profile Wire Pitch Min Pulley Dia
    M50P 1.6-2.4mm Stainless Flat 1.7mm 30mm
    M60P 1.6-2.4mm Stainless Flat 2.54mm 30mm
    Products Available
    Product Code Part Number Description Strip Length Pack Type
    42.723.03.00 M51.2SW-SS-P M50P Patch Short Point Alternate Cut 30mm 25pk Box
    42.723.04.80 M51.2SW-SS-P M50P Patch Short Point Alternate Cut 48mm 25pk Box
    42.723.06.30 M51.2SW-SS-P M50P Patch Short Point Alternate Cut 63mm 25pk Box
    42.723.07.50 M51.2SW-SS-P M50P Patch Short Point Alternate Cut 75mm 25pk Box
    42.654.03.00 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 30mm 25pk Box
    42.654.04.80 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 48mm 25pk Box
    42.654.06.30 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 63mm 25pk Box
    42.654.07.50 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 75mm 25pk Box
    42.654.09.50 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 95mm 25pk Box
    42.654.12.00 M61.2LSW-SS-P M60P Patch Short Point Alternate Cut 120mm 25pk Box

    Contact us if you would like a recommendation

  3. Standard Laundry Hooks
    Specifications
    Product Type Belt Thickness Material Wire Profile Wire Pitch Min Pulley Dia
    M60P 1.6-2.4mm Stainless 316 Flat 2.54mm 30mm
    Products Available
    Product Code Part Number Description Strip Length Pack Type
    42.268.03.00 M61.2LSW-SS M60 Short Point Alternate Cut 30mm 50pk Box
    42.268.04.80 M61.2LSW-SS M60 Short Point Alternate Cut 48mm 50pk Box
    42.268.06.30 M61.2LSW-SS M60 Short Point Alternate Cut 63mm 50pk Box
    42.268.07.50 M61.2LSW-SS M60 Short Point Alternate Cut 75mm 50pk Box
    42.268.08.30 M61.2LSW-SS M60 Short Point Alternate Cut 83mm 25pk Box
    42.268.09.50 M61.2LSW-SS M60 Short Point Alternate Cut 95mm 25pk Box
    42.268.15.00 M61.2LSW-SS M60 Short Point Alternate Cut 150mm 25pk Box
    42.268.30.00 M61.2LSW-SS M60 Short Point Alternate Cut 300mm 25pk Box

    Contact us if you would like a recommendation

  4.

Order Enquiry

Strenex UltiHook Order Enquiry

  • 5 + 18 =
Installation

Installation

Installation technique depends on tooling version used

Please check our Strenex Genuine tooling options for further information

Also ask about our Strenex Tooling Rebate scheme
