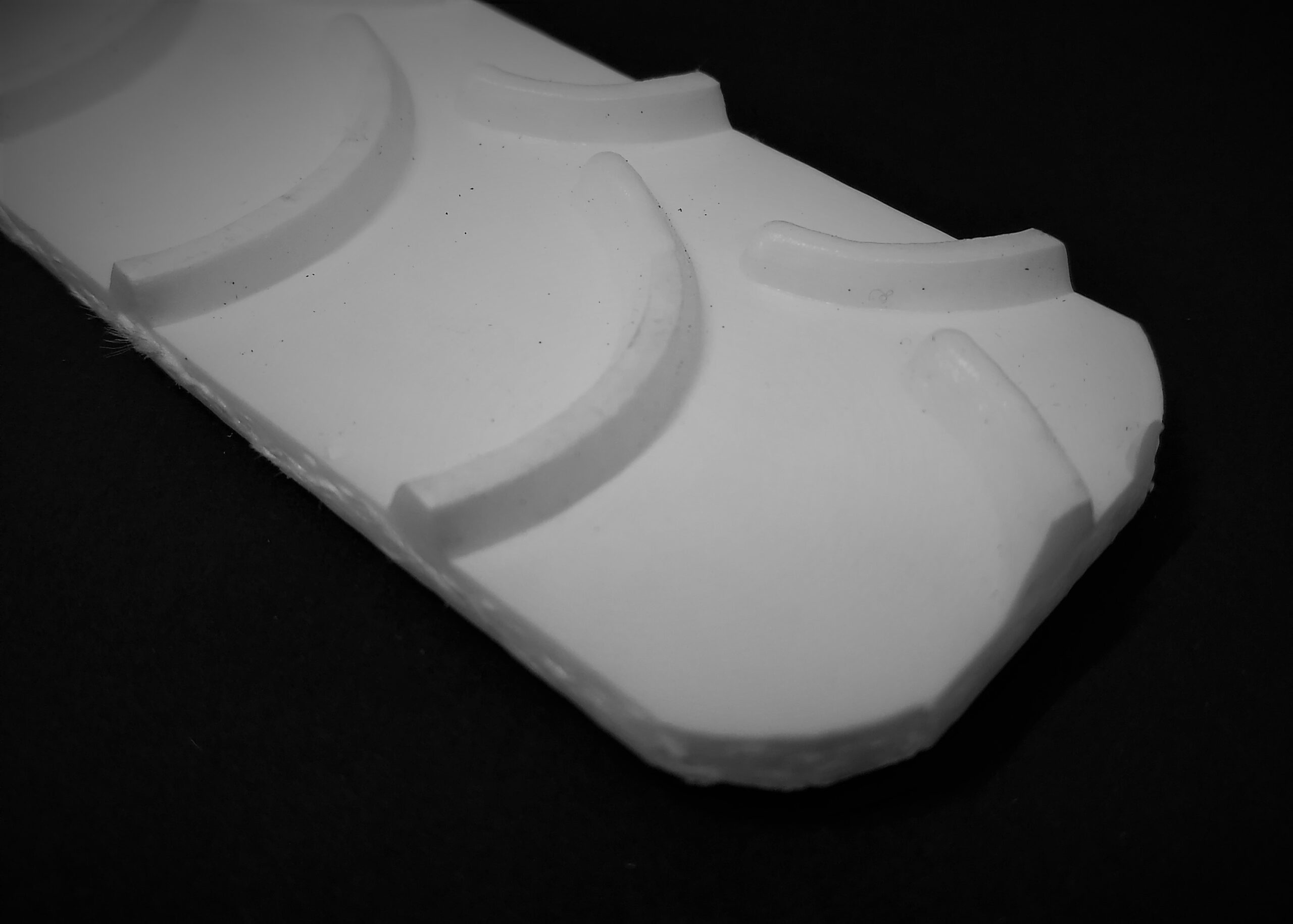

Strenex S120C Solid Woven Crescent Top Belting

General Details

The Strenex S120C Crescent top conveyor belting has an aggressive profile on the conveying surface for shifting loose or bulk goods in troughed or incline conveyors. This product is resistant to fats and oils and its woven construction handles even the toughest applications.. It can be endless spliced or fitted with Strenex fasteners.

Your benefits

  1. Aggressive crescent top profile for moving bulk goods
  2. Resistant to fats and oils.
  3. High impact and wear resistance
Product Construction

Product Construction

Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: Crescent top structure
Colour conveying side: white
Material traction layer: Polyester fabric woven
Number of fabrics: 2
Material running side: Polyester fabric (PET) impregnated with polyvinylchloride (PVC)
Characteristics running side: medium adhesive
Colour running side: white
Cover thickness running side: impregnated

Product Specification

Product Specifications

Total thickness: 5.3 mm (+/- 0,1 mm)
Belt weight: 3.9 kg/m²
Maximum tensile force at 1% elongation: 26 N/mm
– at 1% elongation after relaxation: 10 N/mm
Minimum pulley diameter: 89 mm
Knife edge suitable: no
Operation temperatures: -23…+82°C
Permanently antistatic: no
Flammability: no
FDA Food suitability: Yes (acc. to 21CFR parts 170-199)
EU Food suitability: no

Installation Terms

Installation Terms

Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: yes
Buckling conveyor: (with limits)
Curved installation: no
Troughed installation: yes
Friction coefficient on slider bed of steel: 0,3
Cross rigidity: no
