Strenex F5/2EU07NP/U0 PU 2Ply Inverted Diamond Top Food Belting

General Details

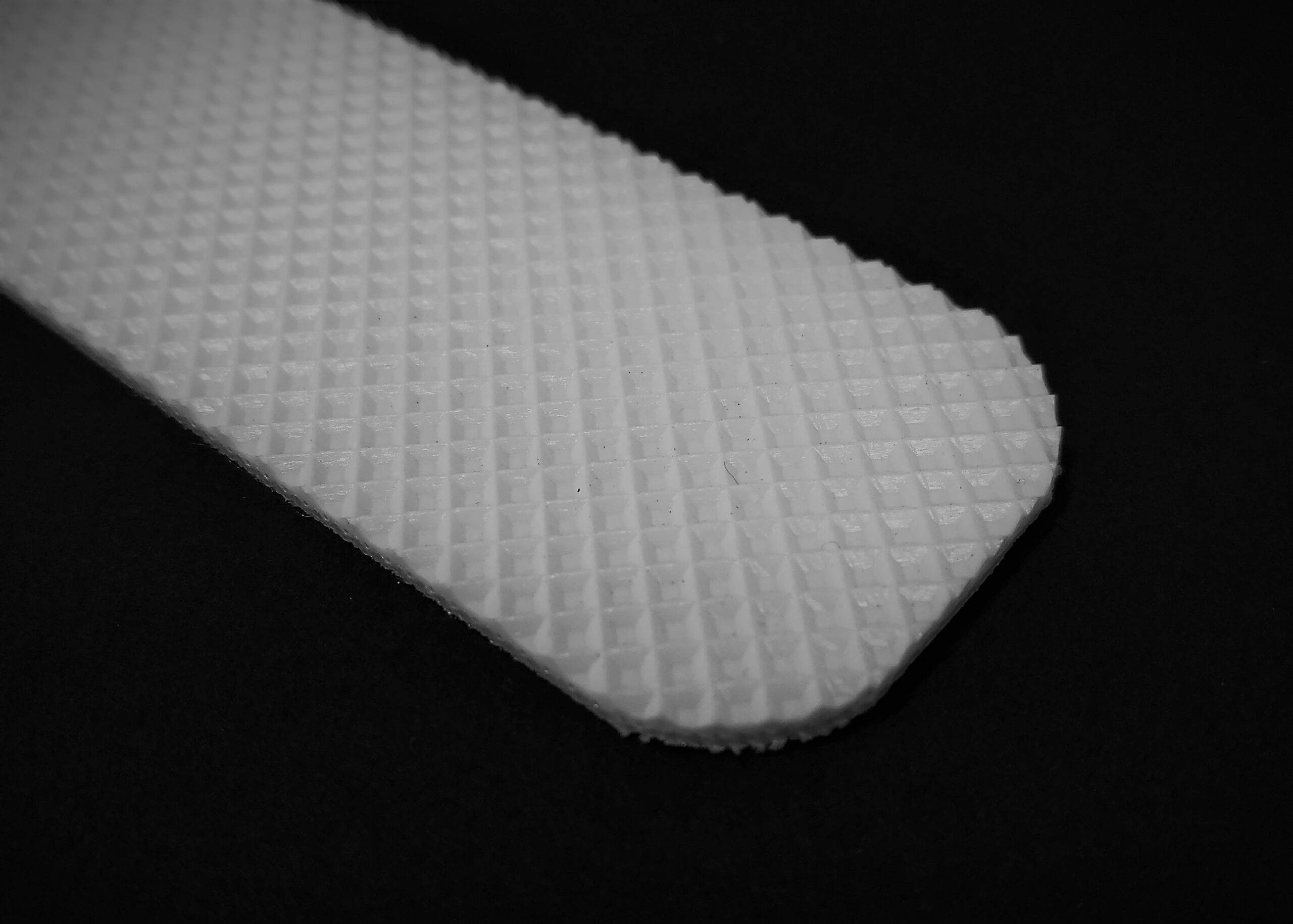

The Strenex F5/2EU07NP/U0 PU 2Ply Inverted Diamond Top Food Belting has a unique inverted diamond texture on the conveying surface. This can assist with product traction for incline conveying, product rolling  or for imprinting a decorative pattern on snacks and confectionery.

Your benefits

  1. Unique diamond pattern
  2. Suitable for small pulley diameters
  3. Food contact suitable
Product Construction

Product Construction

Material conveying side: Polyurethane (PU)
Characteristics conveying side: negative pyramide (NP), not adhesive
Colour conveying side: white
Cover thickness conveying side: 0,7 mm
Shore hardness:  A° 85
Material traction layer: Polyester fabric
Number of fabrics: 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: white
Cover thickness running side: impregnated

Product Specifications

Product Specifications

Total thickness: 1,5 mm (+/- 0,1 mm)
Belt weight: 1,7 kg/m²
Maximum tensile force: 90 N/mm
– at 1% elongation 5 N/mm
Minimum pulley diameter: 20 mm
Knife edge suitable: no
Operation temperatures: -20…+100°C
Permanently antistatic: DIN EN 20284 yes
Flammability: DIN EN 20340 no
Chemical resistance: oil and grease resistant
FDA Food suitability: yes
EU Food suitability: yes

Installation Terms

Installation Terms

Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: yes
Inclined transportation: yes
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
