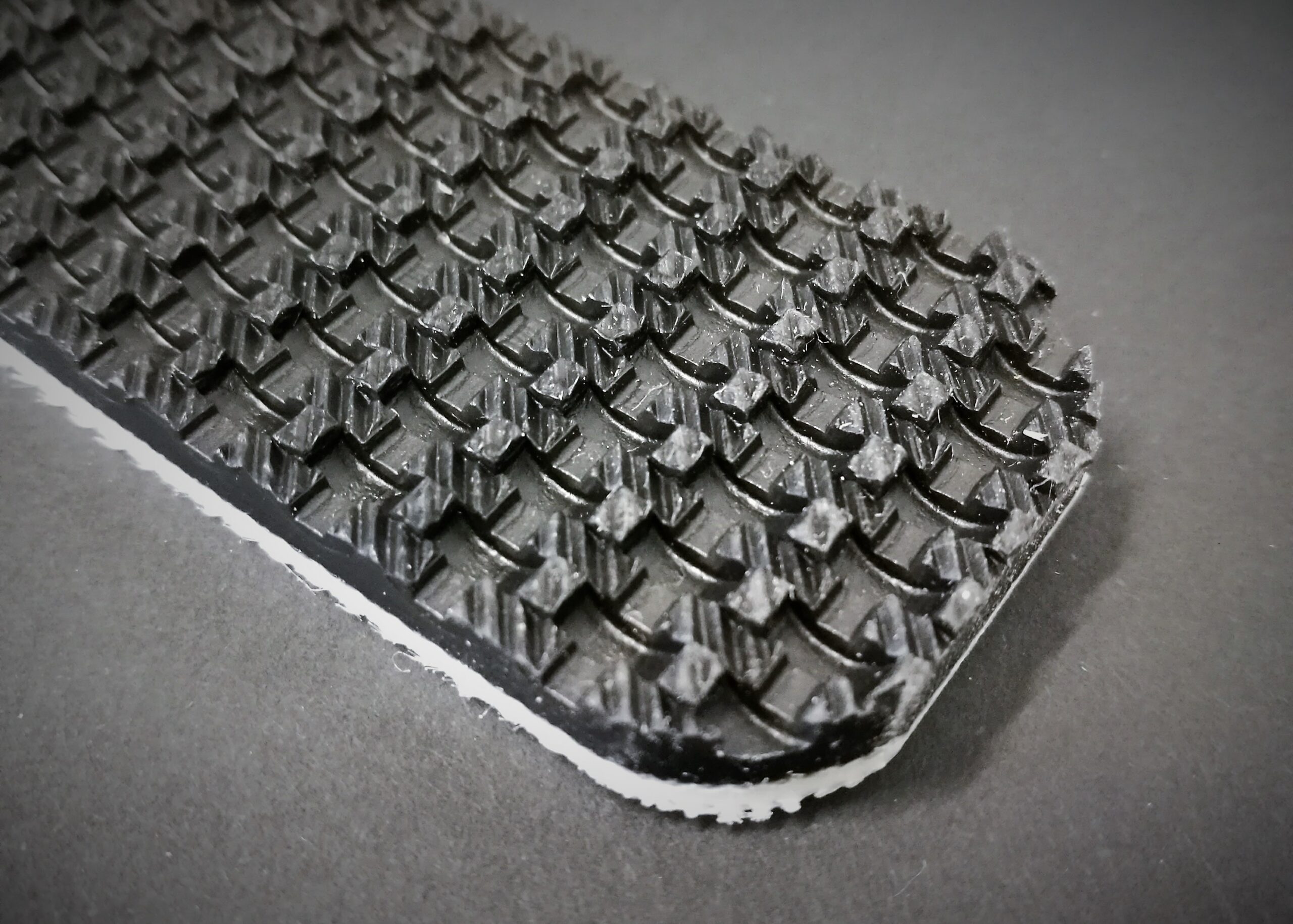

Strenex Z10/2F/V3-52AR-BRT 2Ply PVC Black Rough Top

General Details

The Strenex  Z10/2F/V3-52AR-BRT 2Ply black PVC rough top conveyor belting is a product adaptable to many different applications. It has an aggressive grip structure which is excellent for incline conveyors, carton handling, sheep handling belts and much more. This product has proven itself in outdoor applications with UV and extreme temperature variation. Its traction layer is well suited to fitting guide profiles.

Your benefits

  1. Excellent product traction
  2. High wear resistance
  3. Excellent economy and performance
Product Construction

Product Construction

Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: rough top (AR), adhesive
Colour conveying side: black
Cover thickness conveying side: 2.0 mm
Shore hardness A° 55
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: natural
Cover thickness running side: impregnated

Product Specifications

Product Specifications

Total thickness: 4.7 mm (+/- 0,1 mm)
Belt weight: 4,0 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 10 N/mm
Minimum pulley diameter: 60 mm
Knife edge suitable: no
Operation temperatures: -10…+70°C
Permanently antistatic: DIN EN 20284 yes
Flammability: no
FDA Food suitability: no
EU Food suitability: no

Installation Terms

Installation Terms

Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: yes
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
