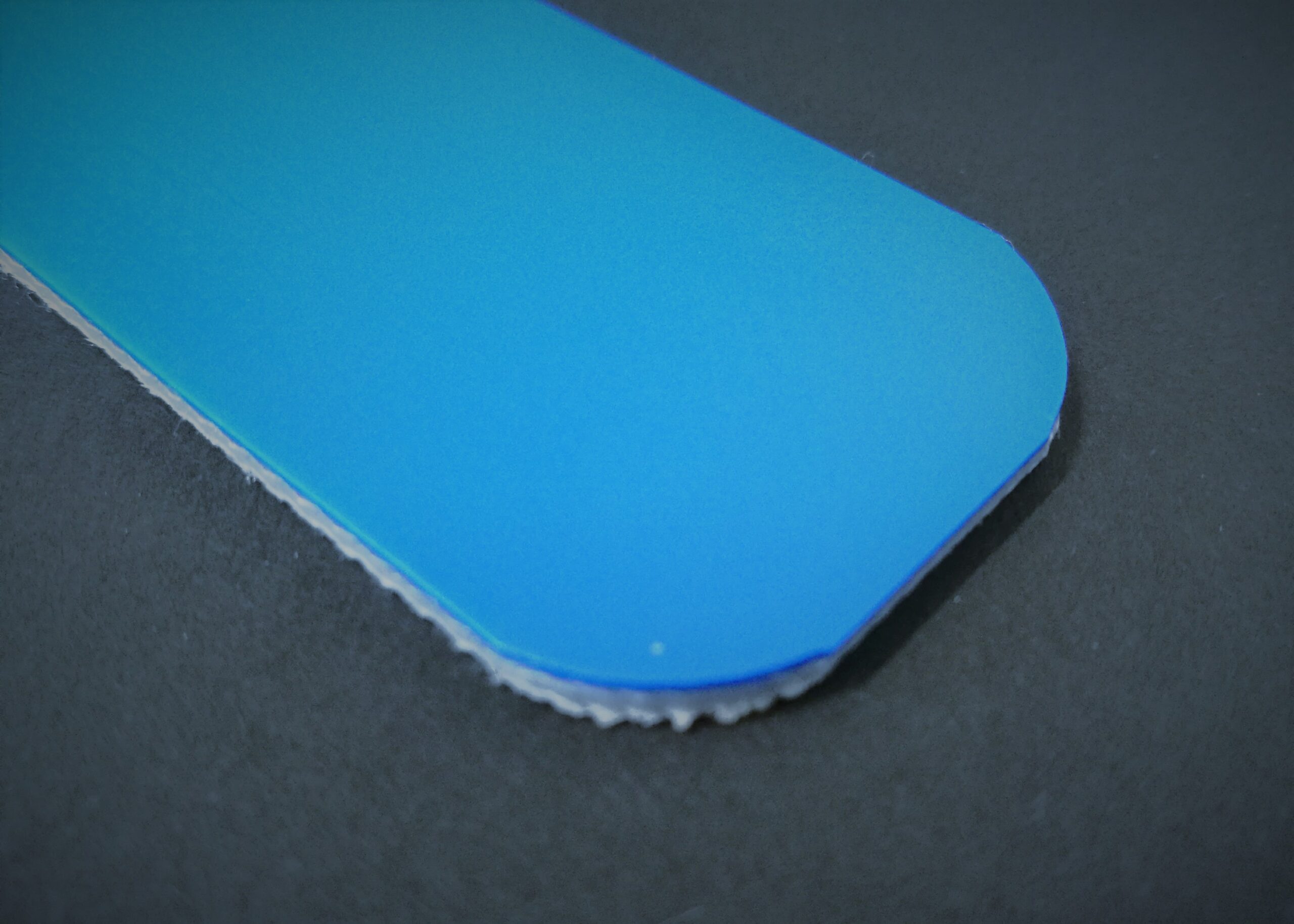

Strenex F8/2EV05A/U0 PVC 2 Ply Blue Food Belting

General Details

The Strenex  F8/2EV05A/U0 2Ply PVC food conveyor belting in blue a low cost solution for general purpose conveying in the food and packing industries. It is suitable for direct food contact on short to medium length conveyor belts.

Your benefits

  1. Economic general purpose usage
  2. Can be fitted with profiles and cleats
  3. Simple, quality splicing results
Product Construction

Product Construction

Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: smooth, adhesive
Colour conveying side: blue
Cover thickness conveying side: 0,5 mm
Shore hardness A° 60
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: white
Cover thickness running side: impregnated

Product Specifications

Product Specifications

Total thickness: 2,0 mm (+/- 0,1 mm)
Belt weight: 2,2 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 8 N/mm
Minimum pulley diameter: 40 mm
Knife edge suitable: no
Operation temperatures: -10…+70°C
Permanently antistatic: DIN EN 20284 yes
Flammability: DIN EN 20340 no
FDA Food suitability: yes
EU Food suitability: yes

Installation Terms

Installation Terms

Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: yes
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
