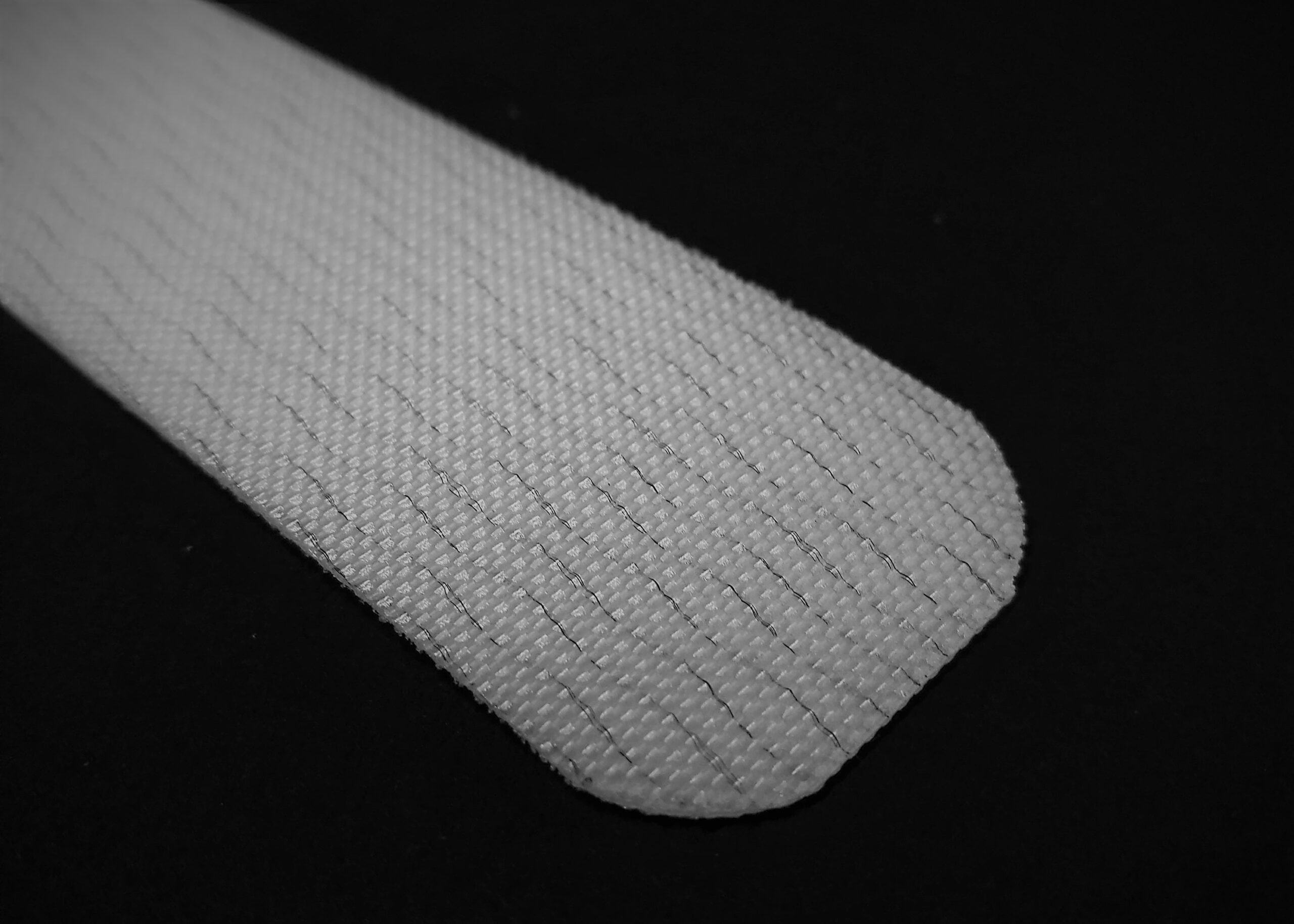

Strenex F5/2E0/U/0 2Ply PU Food Conveyor Belting
The Strenex F5/2E0/U/0 2Ply PU food conveyor belting is an excellent solution for the baking and packaging industries. It has a polyester fabric conveying surface which has very low friction and easy release characteristics. It is also suitable for conveyors with knife edge transfers so is well suited for sticky product.
Your advantages
- Low friction, easy release conveying surface
- Suitable for direct food contact
- Suitable for knife edge transfers
Product Construction
Material conveying side: Polyester fabric
Characteristics conveying side: not adhesive
Colour conveying side: white
Cover thickness conveying side: uncoated
Shore hardness A° —
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: Polyester fabric
Characteristics running side: not adhesive
Colour running side: white
Cover thickness running side: uncoated
Product Specifications
Total thickness: 0,9 mm (+/- 0,1 mm)
Belt weight: 0,9 kg/m²
Maximum tensile force: 90 N/mm
– at 1% elongation 5 N/mm
Minimum pulley diameter: 10 mm
Knife edge suitable: yes
Operation temperatures: -20…+100°C
Permanently antistatic: DIN EN 20284 yes
Flammability: DIN EN 20340 no
Chemical resistance oil and grease resistant
FDA Food suitability: yes
EU Food suitability: yes
Installation Terms
Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: yes
Inclined transportation: no
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
