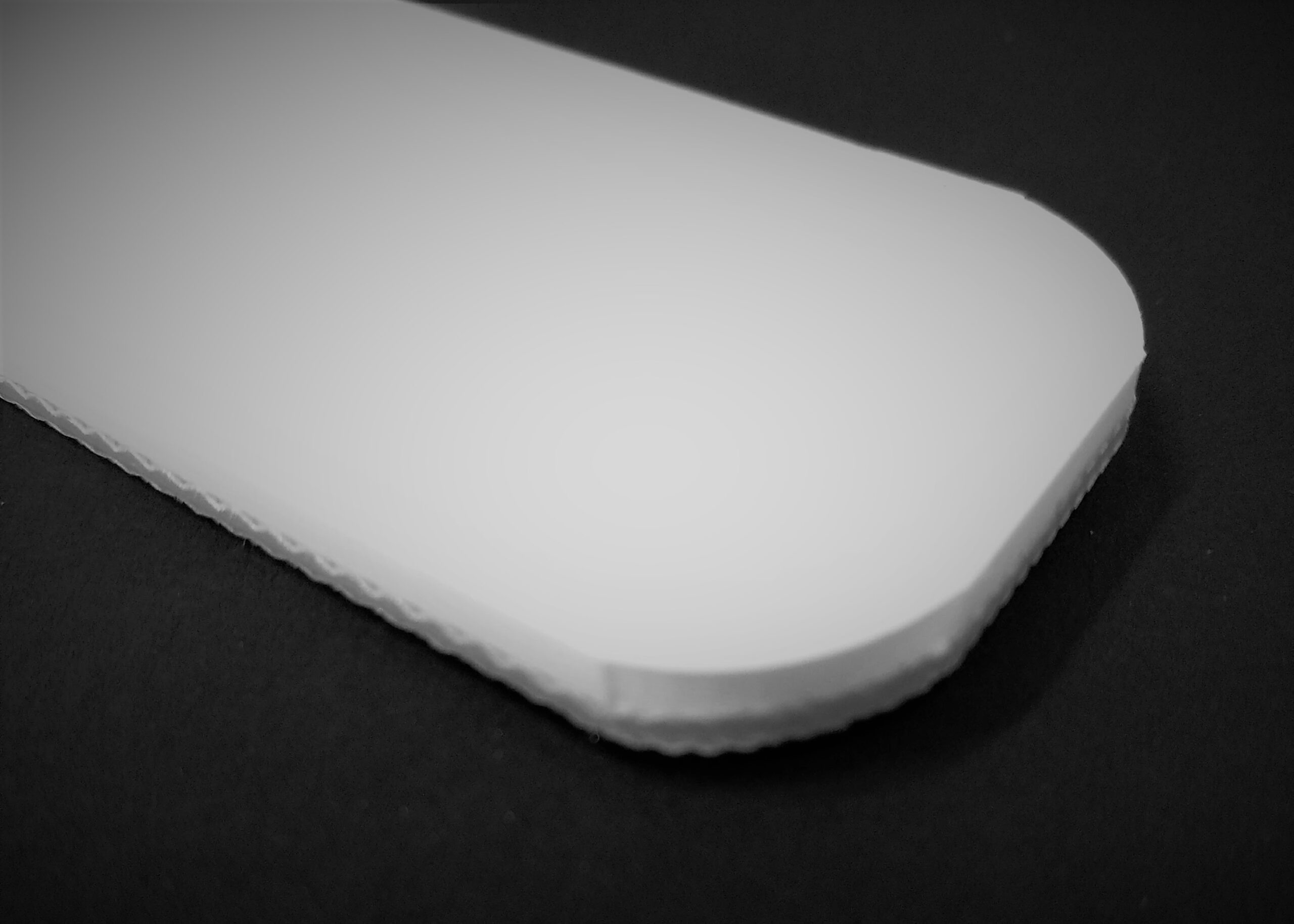

Strenex F12/2EV20A/U0 PVC 2Ply White Food Belting
The Strenex F12/2EV20A/U0 PVC food conveyor belting is an excellent solution for bulk product conveying in many food industries. It has thick PVC conveying surface which is resistant to bacteria and harsh chemicals and doesn’t fray, chip or discolour with usage. In applications such as red meat boning lines, waste belts, transfer belts etc this product will deliver reliability and performance.
Your advantages
- Heavy duty, high wearing conveying surface
- Excellent resistance to bacteria and harsh chemicals
- Doesn’t frey, chip or discolour
Product Construction
Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: smooth, adhesive
Colour conveying side: white
Cover thickness conveying side: 2,0 mm
Shore hardness A° 60
Material traction layer: Polyester fabric
Number of fabrics: 2
Material running side: Polyester fabric
Characteristics running side: sliding
Colour running side: white
Cover thickness running side: impregnated
Product Specifications
Total thickness: 3,8 mm (+/- 0,1 mm)
Belt weight: 4,3 kg/m²
Maximum tensile force: 160 N/mm
– at 1% elongation 12 N/mm
Minimum pulley diameter: 60 mm
Knife edge suitable: no
Operation temperatures -10…+70°C
Permanently antistatic: DIN EN 20284 yes
Flammability: DIN EN 20340 no
Chemical resistance oil and grease resistant
FDA Food suitability: yes
EU Food suitability: yes
Installation Terms
Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: yes
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
